UV System

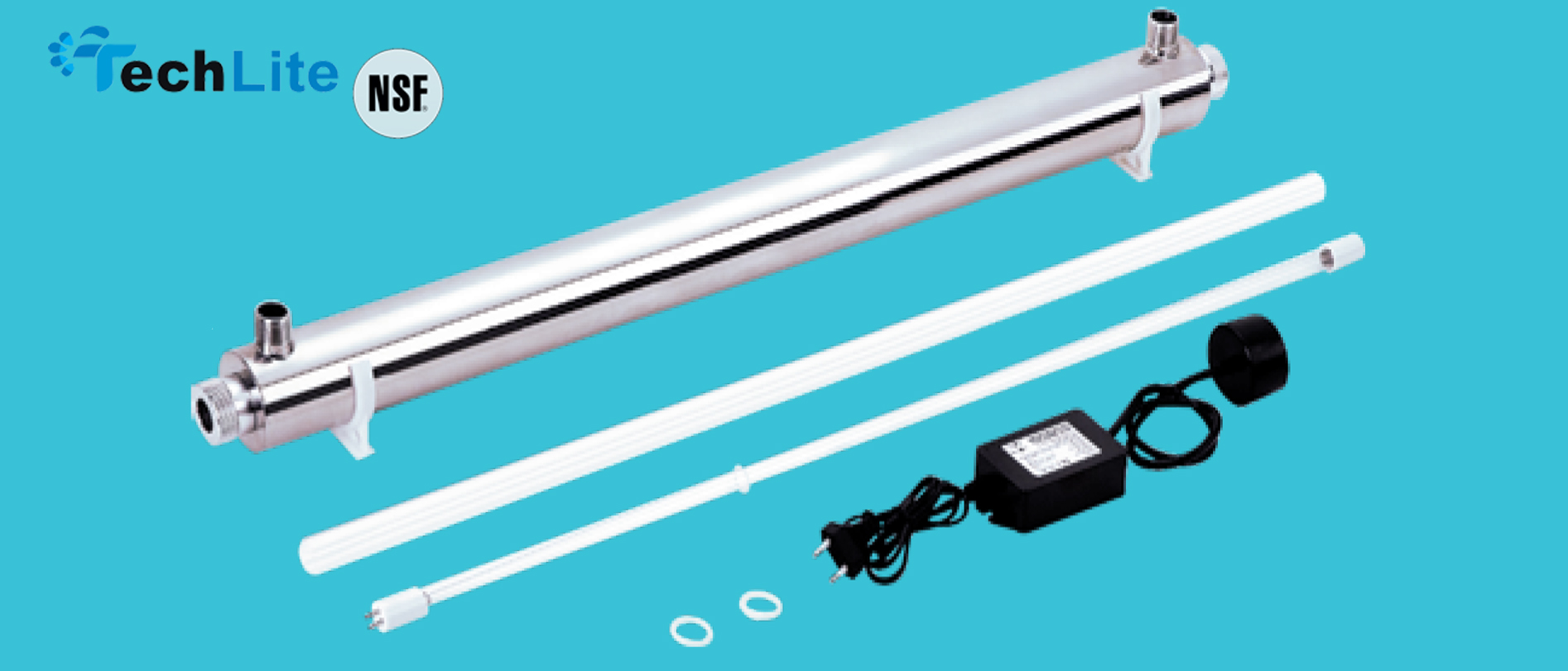

ECONOMY STAINLESS STEEL UV-C STERILIZER 24 GPM - 96 GPM
Description
- Voltage Available 100 - 120V / 220 - 240V 50 / 60Hz
- UV Sterilizer Power Plug Type Europe 3Pin / America 3Pin / UK 3Pin / Australia 3Pin
- Max. Working Pressure: 85 - 125 Ps
- Chamber/Housing: Stainless Steel 304 / 316L
- UV-Lamp: Chinese Brand / Philips / Light Sources
Features
- High quality quartz lamp and sleeve maintain highoutput of UV
- Quick and simple installation makes customer feel good
- Inside electrolytic Polished stainless steel reactor chambers for maximum UV reflection
- Easy lamp replacement and maintenance
Applications
- Reverse Osmosis Pretreatment
- Chemical & Petrochemical
- Dairy
- Drinking Water
- Food and Beverage
- Liquid Desalination
- Electronics
- Fuel Material Extraction
- Pharmaceuticals & Biotechnology
- Pulp & Paper
- Wastewater Reuse
- Recycled Water
- Industrial Water Treatment
Specifications
| Model | Specification | GPM | Inlet/outlet | Pressure |
|---|---|---|---|---|
| HFUV-0.5G | 6 Watts | 0.5 | 1/4" / 1/2" NPT/BSP | 125 PSI |
| HFUV-1G | 11 Watts | 1.0 | 1/4" / 1/2" NPT/BSP | 125 PSI |
| HFUV-3G | 16 Watts | 3.0 | 1/2" / 3/4" NPT/BSP | 125 PSI |
| HFUV-6G | 25 Watts | 6.0 | 1/2" / 3/4" NPT/BSP | 125 PSI |
| HFUV-8G | 30 Watts | 8.0 | 1/2" / 3/4" NPT/BSP | 125 PSI |
| HFUV-12G | 40 Watts | 12 | 3/4" / 1.0" NPT/BSP |
