20NB, 25NB, 40NB, 50NB MULTIPORT VALVES
TOP MOUNT - FRONT FACING AND SKY FACING FILTERS AND SOFTENERS
SIDE MOUNT - FILTERS AND SOFTENERS
NEW GENERATION MODELS WITH INLINE INLET AND OUTLET MODELS
Our wide range of multiport valves are designed for various filtration/softening applications. They provide excellent performance with a simple customer friendly operation. A simple turn of the handle performs multiple functions like filtration, backwash, rinse, brine suction and brine rinse. These valves are also aesthetically designed to give an excellent appearance to the final system.
New Generation Multiport Valves
The innovative new generation models offer a convenient and unique inlet and outlet in the same line feature for filters and softeners.

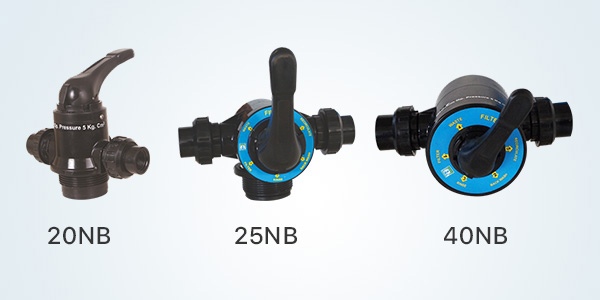

New Generation 20NB, 25NB, 40NB Multiport Valves
Salient Features
- Inlet and outlet in the same line
- Drain on the backside of the valve
- Very easy to install
- No bends in the interconnection pipe. Gives a very neat look to the plant.
- Supplied with unions and high flow disc type top and bottom strainers.
- Most user friendly
Technical Specifications
| Material of Construction | Engineering Thermoplastic |
| Maximum Flow Rate | 2000lph @ 0.5 Kg/cm2 pressure drop |
| Valve Connection to Vessel | 2 1/2" NPT(M) |
| Riser Pipe Size | 25mm OD PVC pipe |
| Inlet, Outlet, Drain Connections | 3/4" BSP(F) |
| Regenerant Suction Tubing | 1/4" |
| Ejector Type | In-built |
| Injector Ratio | 1:2 Power water: Suction flow |
| Maximum Operating Pressure | 5 kg/cm2 |
| Minimum Pressure for Uniform Suction | 2 kg/cm2 |
| Accessories | Top and bottom disc type strainer, Suction tubing and foot valve for softeners only |
20NB New Generation Filter
20NB Filter

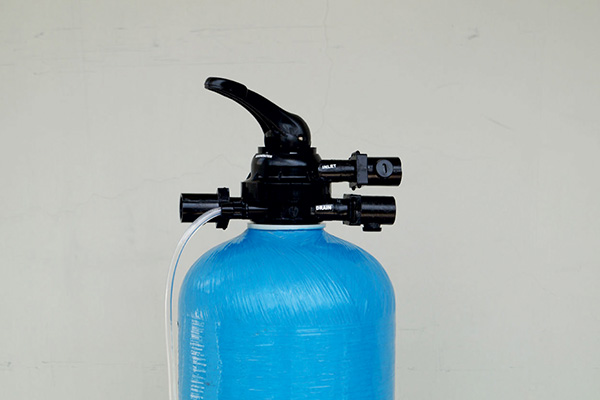

20NB Softener
Technical Specifications
| Material of Construction | Engineering Thermoplastic |
| Maximum Flow Rate | 5000lph @ 0.5 Kg/cm2 pressure drop |
| Valve Connection to Vessel | 2 1/2" NPT(M) or 4" NPT(M) Adaptors provided |
| Riser Pipe Size | 32mm OD PVC pipe |
| Inlet, Outlet, Drain Connections | 1" BSP(F) |
| Regenerant Suction Tubing | 1/2" |
| Ejector Type | In-built |
| Injector Ratio | 1:1 |
| Maximum Operating Pressure | 5 kg/cm2 |
| Minimum Pressure for Uniform Suction | 3 kg/cm2 |
| Accessories | Top and bottom disc type strainer, Suction tubing and foot valve for softeners only |
Available In:
- Front facing type filters and softeners
- Sky facing type filters and softeners
- Side mount/Centre Mounted filter and softener
- New Generation with inlet and and outlet in the same line for filters and softeners
25NB Top Mount Filter New Generation
25NB Top Mount Filter New Generation

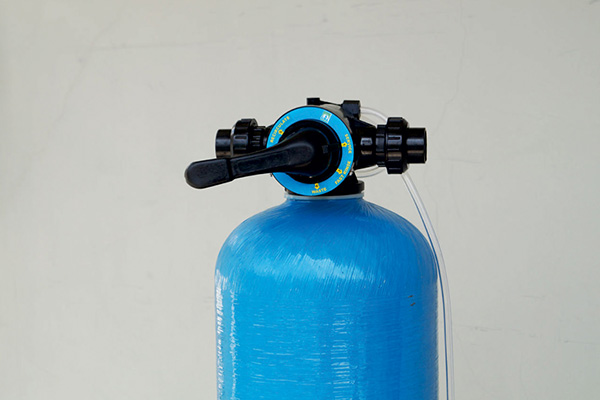

25NB Top Mount Softener New Generation
25NB Front Facing Filter

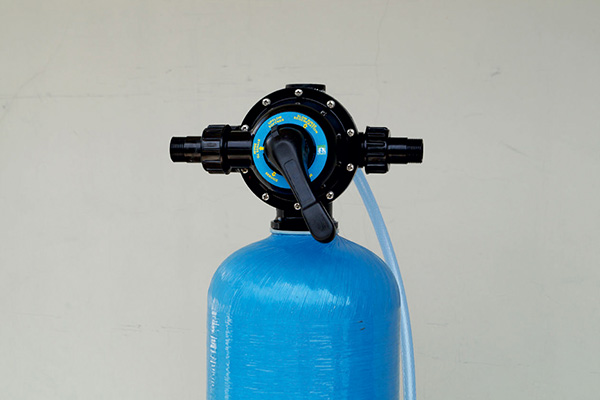

25NB Front Facing Softener

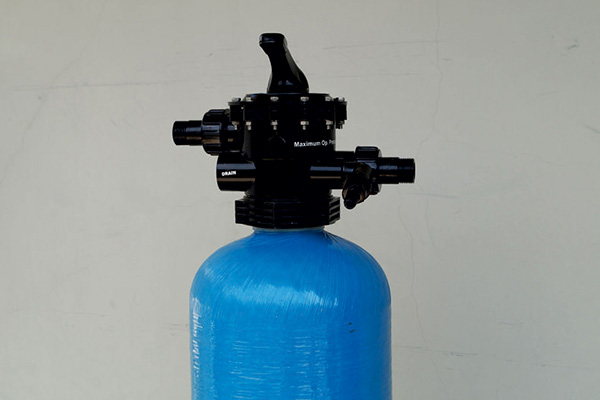

25NB Sky Facing Softener
25NB Sky Facing Filter
25NB Side Mount Filter

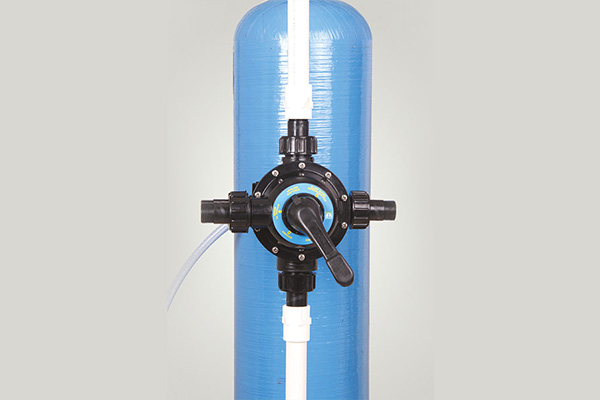

25NB Side Mount Softener
Technical Specifications
| Material of Construction | Engineering Thermoplastic |
| Maximum Flow Rate | 14000lph @ 0.5 Kg/cm2 pressure drop |
| Valve Connection to Vessel | 2 1/2" NPT(M) or 4" NPT(M) Adaptors provided |
| Riser Pipe Size | 32mm OD PVC pipe |
| Inlet, Outlet, Drain Connections | 1 1/2" BSP(F) |
| Regenerant Suction Tubing | 1/2" |
| Ejector Type | 1/2" BSP(F) |
| Injector Ratio | 1:1 |
| Injector Suction Rate | 1000 LPH |
| Maximum Operating Pressure | 5 kg/cm2 |
| Minimum Pressure for Uniform Suction | 3 kg/cm2 |
| Accessories | Top and bottom disc type strainer, Suction tubing and foot valve for softeners only |
Available In:
- Front facing type filters and softeners
- Side mount/Centre Mounted filter and softeners
- New Generation with inlet and and outlet in the same line for filters and softeners
40NB Top Mount Filter New Generation
40NB Top Mount Filter New Generation

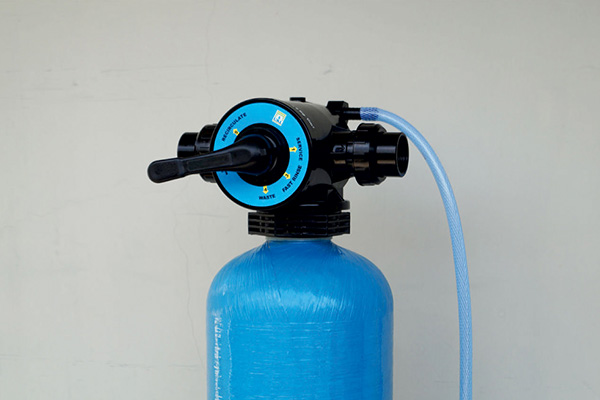

40NB Top Mount Softener New Generation
40NB Top Mount Filter

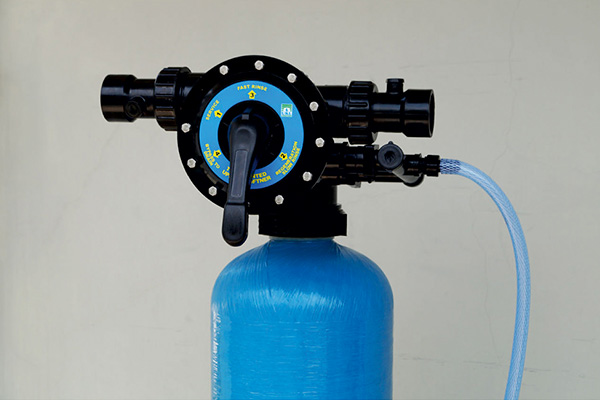

40NB Top Mount Softener
40nb Side Mount Filter W /Straight Unions

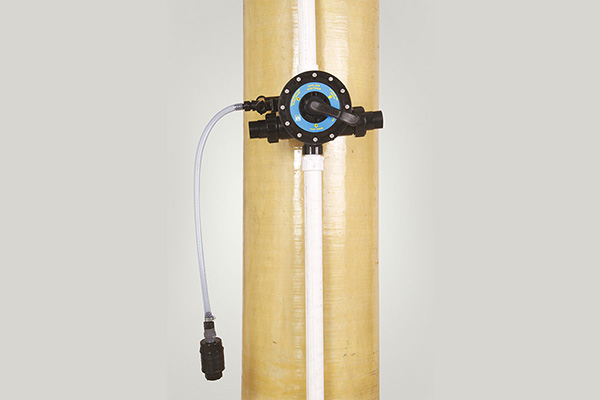

40nb Side Mount Softener
Technical Specifications
| Material of Construction | Engineering Thermoplastic |
| Maximum Flow Rate | 29000lph @ 0.5 Kg/cm2 pressure drop |
| Inlet, Outlet, Drain Connections | 2" BSP(F) |
| Regenerant Suction Tubing | 1/2" |
| Ejector Type | 1" BSP(F) |
| Injector Ratio | 1:1 |
| Injector Suction Rate | 1600 lph |
| Maximum Operating Pressure | 5 kg/cm2 |
| Minimum Pressure for Uniform Suction | 3 kg/cm2 |
| Accessories | Top and bottom disc type strainer, Suction tubing and foot valve for softeners only |
Available In:
- Side mount/Centre Mounted filter and softener
50NB Side Mount Filter
