SS Membrane Housing

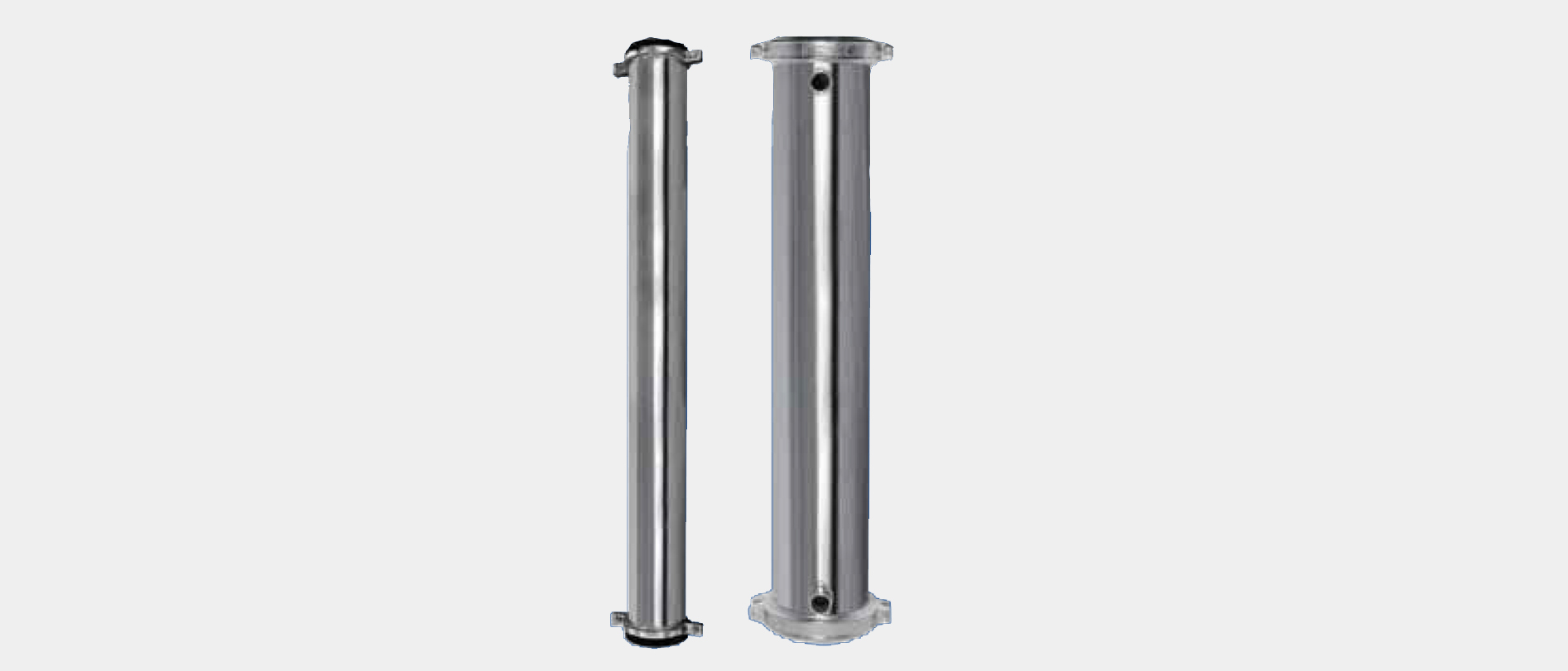

STAINLESS STEEL MEMBRANE HOUSING (4” & 8” MEMBRANE)
Description
Stainless steel membrane pressure housing are designed and precision manufactured, using high-grade materials and components, for direct connection to all standard RO membrane elements and are available in 304 and 316 stainless steel.
A combination of precision design and manufacturing processes along with attention to detail ensures all housing vessels supply superior flow and reduced pressure drop.
Features
- Housing material : stainless steel 304 or 316L
- Material of cap : stainless steel
- Accommodate : 1-6 RO membrane elements
- Stainless steel tube : high polished exterior
- End port and side port configuration
- Double O-ring
- Pressure rating : 300psi
- Available for all types of RO membranes
- pH: 5 to 8
| Component Material | |
|---|---|
| Housing | 304 Stainless Steel 316L Stainless Steel available |
| End Cap | ABS |
| O-ring | Double, EPDM |
| Clip | 304 Stainless Steel |
| Fasteners | 304 Stainless Steel |
Stainless steel advantage
- Unlike fiberglass doesn’t warp or weep
- Is not affected by UV rays or sunlight
- Stainless Steel is a preferred and universally accepted material for water systems
- Can withstand high temperatures
- Capable of supporting process piping
- Aesthetic finish and attractive look
Specifications

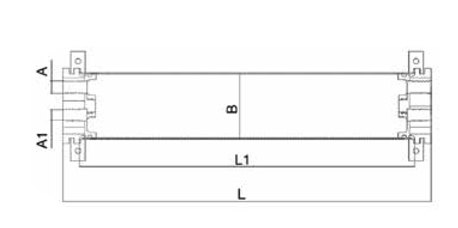

| MODEL | L, (mm) | L1, (mm) | A, (mm, inch) | B, (mm, inch) |
|---|---|---|---|---|
| SS 4021 | 602 | 550 | DN 15, 1/2" | DN 15, 1/2" |
| SS 4040 | 1077 | 1025 | DN 20, 3/4" | DN 15, 1/2" |
| SS 4080 | 2099 | 2047 | DN 20, 3/4" | DN 15, 1/2" |
| SS 401 20 | 3115 | 3063 | DN 20, 3/4" | DN 15, 1/2" |
| SS 401 60 | 4131 | 4079 | DN 20, 3/4" | DN 15, 1/2" |
