Rhino FRP membrane pressure vessels are manufactured by computer controlled filament winding machine and associated high precision processing equipments with a team of skilled technical experts in the field of computer controlled machines,and with all the state-of-art processing machines in-house. Rhino offers a range of high quality membrane housings in various colors including white, blue and grey as per customer’s choice

• Available in End Port and Side Port configurations.
• Internal diameter is mirror finished to a tolerance of ±0.1mm facilitating easy loading & unloading of membranes.
• External surfaces are highly polished & coated with high-gloss polyurethane paints for UV resistance & excellent aesthetics.

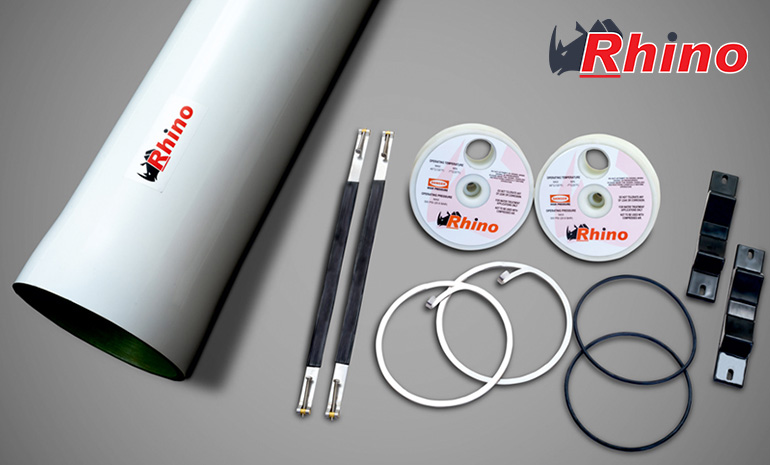

• End Cap assembly comprises of a single piece moulded seal plate, a unique high quality seal ring, a heavy duty aluminium bearing plate and a 3 turn stainless steel locking ring. This unique design facilitates easy removal and insertion of the end cap without any special tools, making it very user-friendly.
• Permeate Port comprises a standard 1" half union. Other options of 1 1/1" BSP(M) threads and 1" BSP(F) threads are also available. (NPT threads provided on request).
• 8" membrane housings are available from 1 element to 6 elements with pressure ratings of 250psi, 450psi, 600psi, 1000psi
• All models are supplied with saddle and SS straps.
• Victolic couplings available on request
• Uses in Commercial, Industrial, Municipal, Residential

• Residential water Filtration
• Commercial water Filtration
• Industrial water Filtration
• Softening applications

FRP Membrane Housing
