4 Inch

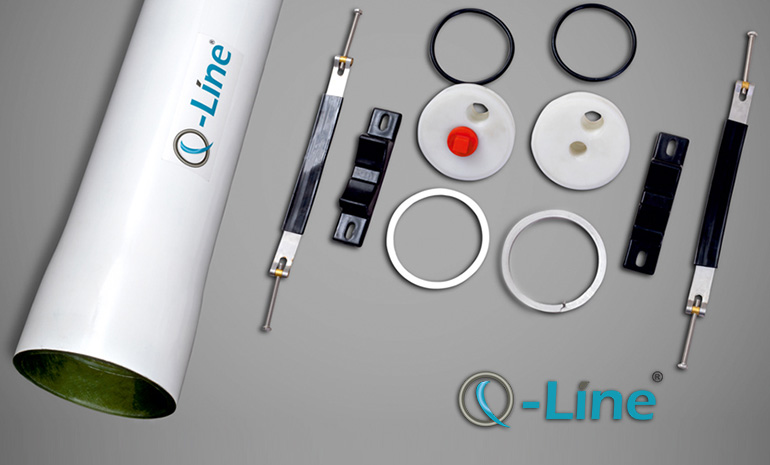

4 inch Membrane Housing
Description
Q-line is membrane pressure vessel of 4" diameter with end entry design. This is used for commercial and industrial RO applications. Vessel models are available upto a maximum operating pressure of 300PSI,450PSI,600PSI,1000PSI & 1200PSI
These are made up of epoxy / Glass composite to meet the demands of long term and continuous use in RO processes.
Features
Mirror finish ID for Easy & quick loading and unloading of membranes.
Quick lock head retention system for quick access to membranes.
Exteriors coated with high gloss poly Urethane paint for UV Resistance.
Compact design for use in compact and Low energy water treatment units.
More accurate Head Seal Area is formed by mandrel surface
Head Seal is captured,hence dosen’t Roll during head assembly fitment
| Membrane Filter Housing Model No. |
Max Operating Pressure |
Max Operating Temperature |
Quality Control Test Pressure |
Burst Pressure |
Element Length |
|---|---|---|---|---|---|
| Q-40E-300 | 300PSI (20Bar) | 49 °C(120 °F) | 450PSI (31Bar) | 1500PSI (103Bar) | 1 - 6 |
| Q-40E-450 | 450PSI (31Bar) | 49 °C(120 °F) | 675PSI (47Bar) | 2250PSI (155Bar) | 1 - 6 |
| Q-40E-600 | 600PSI (41Bar) | 49 °C(120 °F) | 900PSI (62Bar) | 2250PSI (155Bar) | 1 - 6 |
| Q-40E-1000 | 1000PSI (69Bar) | 49 °C(120 °F) | 1500PSI (103Bar) | 2250PSI (155Bar) | 1 - 6 |
| Q-40E-1200 | 1200PSI (82Bar) | 49 °C(120 °F) | 1800PSI (124Bar) | 2250PSI (155Bar) | 1 - 6 |
