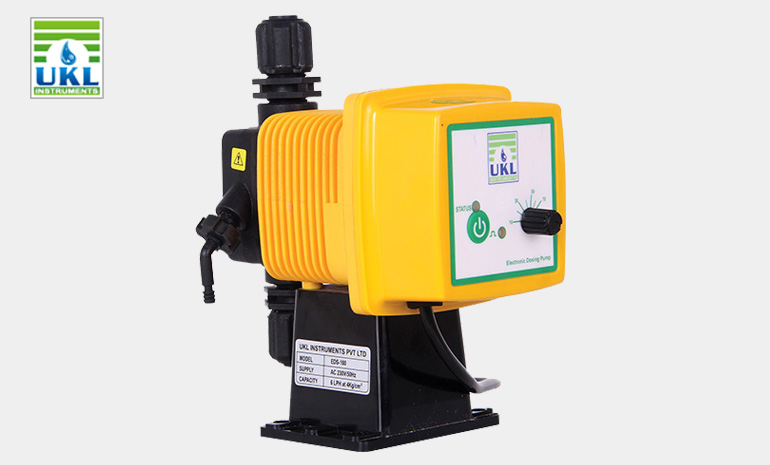

UKL - Dosing Pump
EDS Series - 1.5, 3, 6, 10, 21 LPH
- Compact and good aesthetics
- Double Ball NRV
- Built in Air release valve
- Solid PTFE diaphragm for longer life
- Time tested electronics for reliable performance
- Adjustable Stroke frequency
| Power Supply |
230 V AC 50hz |
| Liquid End |
Glass filled Polypropylene |
| Valve Ball |
Pyrex |
| Seals |
Viton |
| Diaphragm |
Solid PTFE diaphragm |
| Suction/Delivery Tubing |
4/6 mm LDPE tubing(3 metres length) |
| Stroke Frequency |
400 stokes per minute Maximum |
| Model |
Capacity |
Max. Injection Pressure |
| EDS 1.5 |
1.5 lph |
4 kg/cm2 |
| EDS 3 |
3 lph |
4 kg/cm2 |
| EDS 6 |
6 lph |
4 kg/cm2 |
| EDS 10 |
10 lph |
4 kg/cm2 |
| EDSA |
21 lph |
4 kg/cm2 |
| EDS 1.5 |
1.5 lph |
Open to Atmosphere |
| A |
94.5 |
| B |
160 |
| C |
201 |
| D |
180 |
| E |
28 |
| F |
78 |

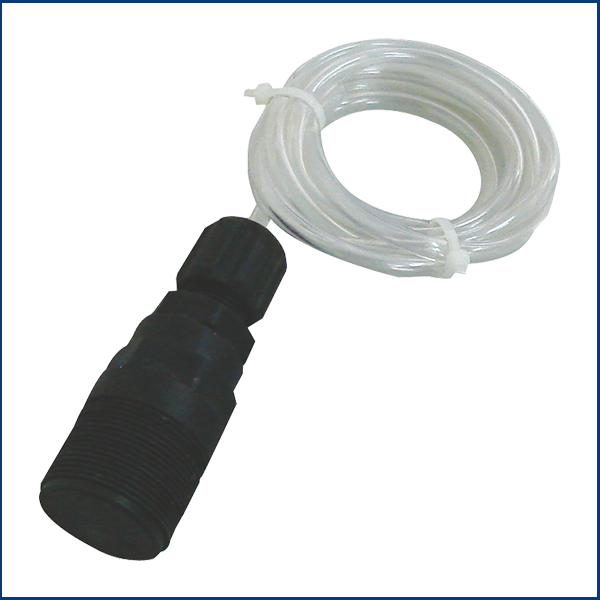

The injection check valve is a spring loaded nonreturn valve which prevents the water in the pressurized pipeline from returning back.

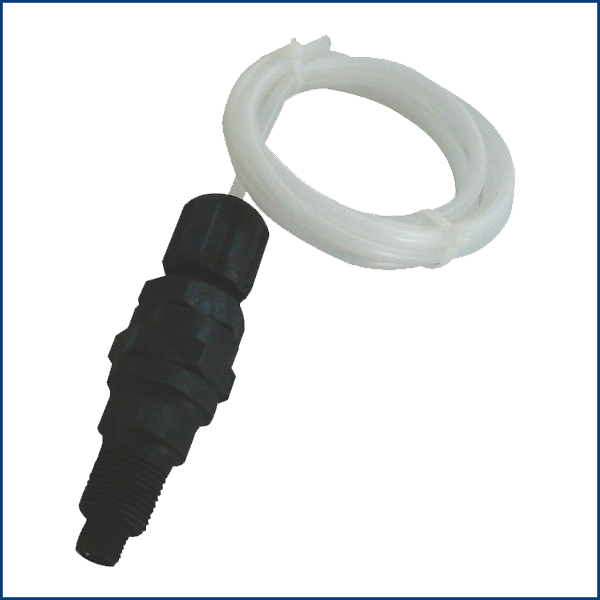

The foot valve is a non-return valve with a strainer to ensure that any dirt particles in the chemical being dosed is filtered before entering the pump.
*Optional valve seats in Teflon and balls in ceramic also supplied on request
