• Max lift: 153 m;
• Max flow: 6m³ / h;

• The temperature of the medium does not exceed +60 ° C;
• The ambient temperature does not exceed +40 ° C;
• The PH value of the medium is between 6.5 and 8.5, the volume ratio of solid impurities in the medium is ≤ 0.1%, and the particle size is ≤ 0.2mm.
• The maximum working pressure is 15 bar;
• The highest altitude is 1000m;

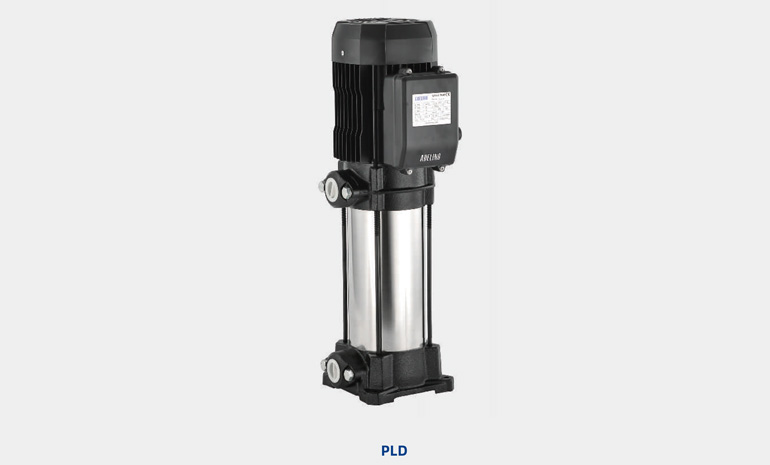

The product has the characteristics of high cost-effective，high pressure and low noise,etc. PL(D) are widely used in many fields, such as water supply system and water filtration and boost system for pipeling, washing and cleaning, boiler feed water, cooling water circulation, water treatment, ultra-filtration, reveser osmosis systems, water fertilizer integrated machine etc.

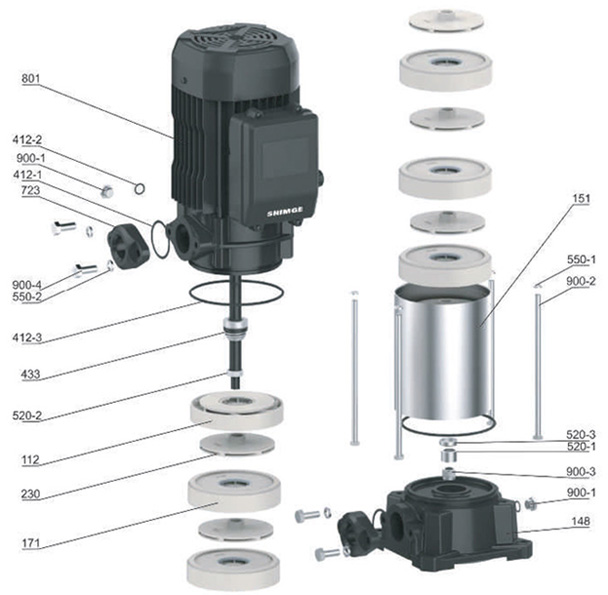

• Pump seat / Coupling / Back Cover / Inlet Pipe: Cast Iron;
• Axis: 304+45 friction welding;
• Impeller / Guide vane: PPO + GF30
• Case: YL102
• Pump barrel: 304
• Junction box: ABS
• Mechanical seal: silicon carbide / graphite / nitrile rubber;
• Bearing: 6305-2RS / human, 6204-2RS / human, contact sealed;
• Motor: 2-pole asynchronous motor, copper coil, fan cooling, continuous operation.
• Protection level: IP 55;
• Insulation class: F.
