MVC Series

MVC SERIES

High Pressure Centrifugal Pump

Specifications
  • Power Range : 1.1 kW to 4 kW (1.5 HP to 5.5 HP)
  • Head Range in Meters : 37 Mtrs to 211 Mtrs
  • Flow Range in Meters : 1 m/hr to 7 m/hr
  • Version : Single Phase, 230V & Three Phase 380-415V, 50Hz, A.C. Supply
  • Liquid Temperature : 0° C to 90° C and -15° C to 120° C*
  • Ambient Temperature : 45° C
  • Max. Working Pressure : 21 bar
  • Insulation Class F : "F"
  • Degree of Protection : IP 55

* Applicable only for Special Mechanic Seal Models

Material Of Construction
  • Outer Shell : SS 304
  • Pump Head & Base : CI
  • Impeller & Diffuser : SS 304
  • Pump Shaft : SS 304 / SS 431
  • Bearing Ring : SiC & T.C
  • Mechanical Seal : SiC Vs SiC Vs Viton / T.C Vs Car Vs Viton
  • Motor Frame : Aluminium
  • Front & Back Cover : Aluminium
  • Cooling Fan Cover : Mild Steel
  • Cooling Fan : Nylon
Performance curve

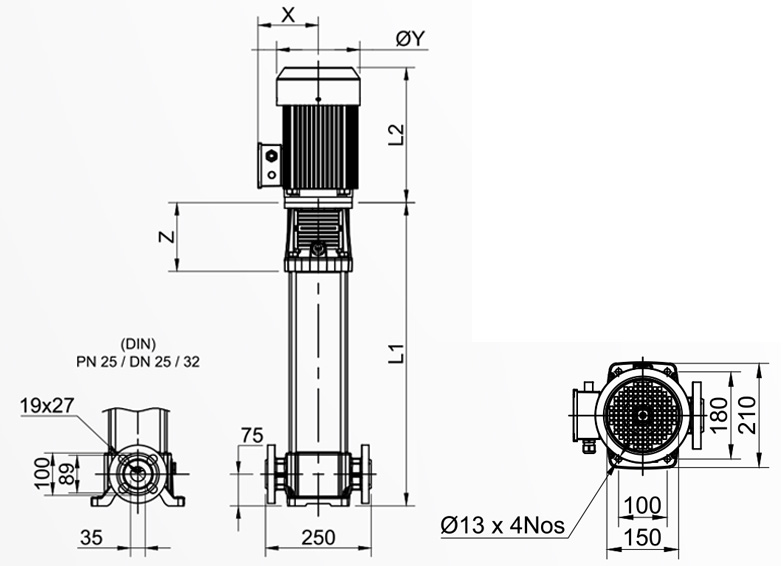

Model Power Dimension in mm Weight in kg
kW HP L1 L2 X Ø Y Z Pump Motor
1Ph 3Ph 1Ph 3Ph MTP 1Ph 3Ph
MVC-02/09 1.1 1.5 395 260 - 148 - 139 146 23.6 10.7 -
MVC-02/11 1.1 1.5 431 260 - 148 - 139 146 25.0 10.7 -
MVC-02/13 1.5 2 485 320 - 157 - 160 163 26.6 15.3 -
MVC-02/15 1.5 2 521 320 - 157 - 160 163 28.0 15.3 -
MVC-02/18 2.2 3 575 303 - 161 - 176 163 30.1 18.0 -
MVC-02/22 2.2 3 647 303 - 161 - 176 163 33.0 18.0 -
MVC-04/12 2.2 3 575 303 - 161 - 176 163 29.4 18.0 -
MVC-4E/12 2.2 3 466 303 - 161 - 176 163 25.9 18.0 -
MVC-4E/16 3 4 538 361 - 161 - 176 163 28.7 22.2 -
MVC-4E/19 4 5.5 592 - 315 - 132 197 163 27.2 - 22.3
MVC-4E/22 4 5.5 646 - 315 - 132 197 163 29.3 - 22.3
Performance Chart
Model KW HP Stage m3/hr 0 1.5 2 2.5 3 3.5 4
lps 0 0.41 0.55 0.69 0.83 0.97 1.11
MVC-02/09 1.1 1.5 9 HEAD IN METERS 86 76.5 70 62 52.5 45 37
MVC-02/11 1.1 1.5 11 104 90 83 73.5 62.5 50 37.5
MVC-02/13 1.5 2.0 13 128 109 100 87.5 72.5 57.5 42
MVC-02/15 1.5 2.0 15 145 122.5 112.5 100 85 67.5 47.5
MVC-02/18 2.2 3.0 18 179 153.5 141 126 108 88 63
MVC-02/22 2.2 3.0 22 211 180 165 150 127.5 100 70

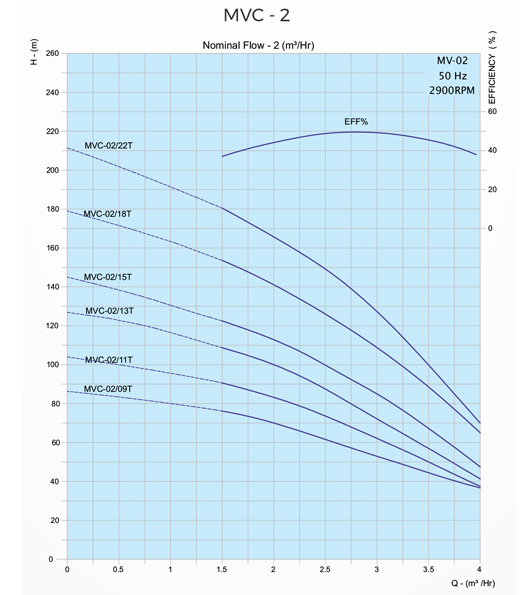

Performance Curve
Performance Chart
Model KW HP Stage m3/hr 0 1.5 2 2.5 3 3.5 4
lps 0 0.41 0.55 0.69 0.83 0.97 1.11
MVC-04/12 2.2 3.0 12 HEAD IN METERS 120.5 110 105 99.5 90 77 61
MVC-4E/12 2.2 3.0 12 110 108 106 102 92 77 60
MVC-4E/16 3.0 4.0 16 150 144 140 132 123 104 75
MVC-4E/19 4.0 5.5 19 180 170 164 158 142 120 96
MVC-4E/22 4.0 5.5 22 205 196 186 178 161 134 105

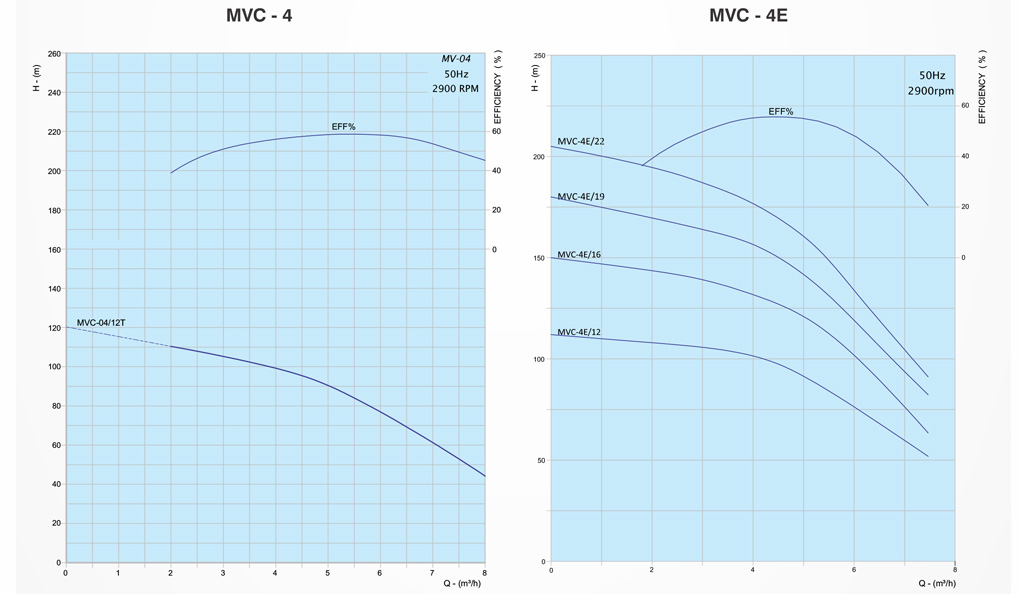

Performance Curve
