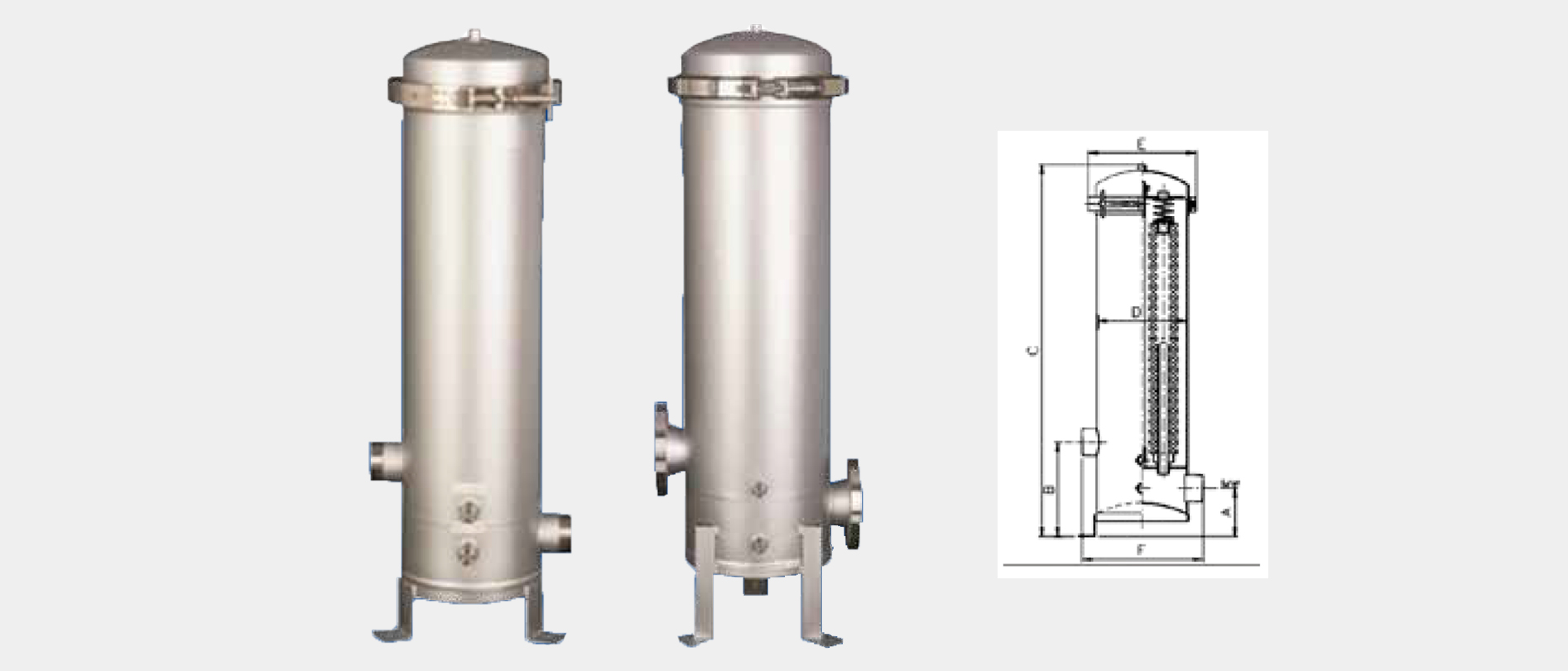

SS Filter Cartridge Housing
HF-V-Clamp Filter Cartridge Housing
Description
- Cartridge Filter Housing
- Material: SUS304, SUS316L;
- Max working pressure 100
- Psi Polished or sandblast external surface.
Specifications
HFTCFH 3 Rounds/4&5 Rounds/12Rounds/22Rounds
- Design for Industrial & commercial application with Non-Code.
- Sidein/Side out & Band V-clamp top closur
- Max. working pressure & temperature: 150 psi & 250 ° F
- Materialgrade: SS304/316L heavy duty construction
- O=ring: Standard is Buna-N; EPDM
- Connection: standard is 1-2” MNPT thread.
- MBSP/Flange/Victaulic/Tri-clamp is option
- Cartridge: DOE, 10-40melt blown & wound cartridge
- 1/2" drain & 1/4" NPT vent or gauge.
| MODEL | A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
Inlet Outlet |
Drain |
|---|---|---|---|---|---|---|---|---|
| HFCF - Φ Φ 170 X 3 X 20" | 75 | 180 | 800 | Φ Φ 170 | Φ Φ 216 | 230 | 1 � - 1 ½ � | ¼ � - ½ � |
| HFCF - Φ Φ 170 X 3 X 30" | 75 | 180 | 1050 | Φ Φ 170 | Φ Φ 216 | 260 | 1 � - 2 � | ¼ � - ½ � |
| HFCF - Φ Φ 200 X 5 X 20" | 75 | 180 | 810 | Φ Φ 200 | Φ Φ 248 | 260 | 1 � - 2 � | ¼ � - ½ � |
| HFCF - Φ Φ 200 X 5 X 30" | 75 | 220 | 1060 | Φ Φ 200 | Φ Φ 248 | 260 | 1 � - 2 � | ¼ � - ½ � |
| HFCF - Φ Φ 250 X 5 X 40" | 75 | 220 | 1360 | Φ Φ 200 | Φ Φ 248 | 260 | 1 � - 2 � | ¼ � - ½ � |
| HFCF - Φ Φ 250 X 7 X 10" | 120 | 220 | 620 | Φ Φ 250 | Φ Φ 310 | 310 | 1 � - 1 ½ � | ½ � |
| HFCF - Φ Φ 250 X 7 X 20" | 120 | 220 | 870 | Φ Φ 250 | Φ Φ 310 | 310 | 1 � - 1 ½ � | ½ � |
| HFCF - Φ Φ 250 X 7 X 30" | 120 | 220 | 1120 | Φ Φ 250 | Φ Φ 310 | 310 | 1 � - 2 ½ � | ½ � |
| HFCF - Φ Φ 250 X 7 X 40" | 120 | 220 | 1370 | Φ Φ 250 | Φ Φ 310 | 310 | 1 � - 2 ½ � | ½ � |
