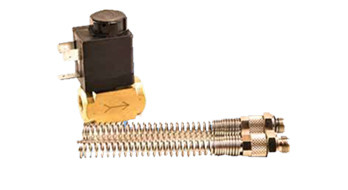

Brass Solenoid Valve
Brass Solenoid Valve
Description
2W brass series 2/2way direct lifting diaphragm type solenoid valve normally closed type.
Features
- 2/2way, 0-10bar
- Flow channel
2.5-50mm - Detachable repair
- Sealing material:
NBR rubber - EPDM rubber - fluoro rubber -specific material - Suitable for water, air, water vapor, light oil, natural gas, etc.
- Provide IP65 three-pole connector in accordance with UNI ISO 4400 (DIN 43650A) / lead connection / explosion-proof coil
| Specification sheet | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Connection method |
Flow aperturemm |
KV value m3/h |
Pressure difference(BAR) | Dimensions Length x width x height |
Model (voltage is 220v) X = N or E or V |
||||||
| Minimum pressure |
Maximum working pressure | ||||||||||
| Air, Gas | Water, Liquid | Light oil | |||||||||
| AC | DC | AC | DC | AC | DC | ||||||
| 1/2" | 15 | 2.1 | 0 | 8 | 7 | 8 | 7 | 7 | 4 | 66 x 56 x 100 | 2W- 15 - 41 X |
| 3/4" | 20 | 5.7 | 0 | 8 | 7 | 8 | 7 | 7 | 4 | 73 x 57 x 123.5 | 2W- 20 - 51 X |
| 1" | 25 | 9.6 | 0 | 8 | 7 | 8 | 7 | 7 | 4 | 99 x 73.5 x 134.5 | 2W- 55 - 61 X |
