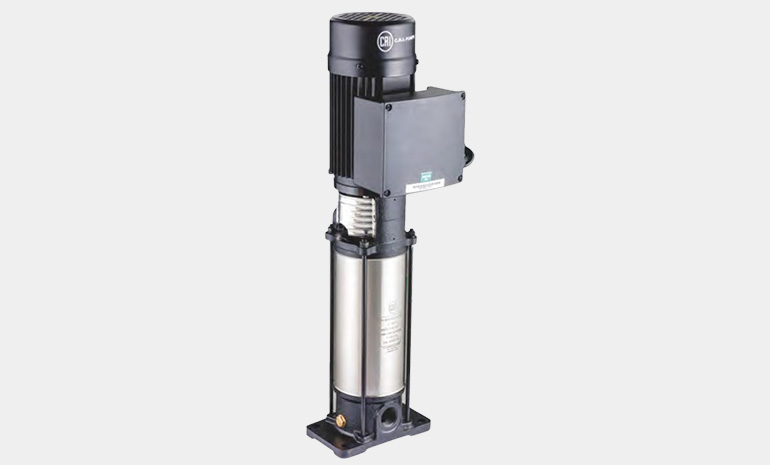

MTC SERIES

Specifications

Power Range : 1.1 kW to 3 kW (1.5 HP to 4 HP)
Head Range in Meters : 37 Mtrs to 211 Mtrs
Flow Range in Meters : 1 m/hr to 8 m/hr
Version : Single Phase, 230V & Three Phase 380V-415, 50Hz, A.C. Supply
Liquid Temperature : 0° C to 90° C and -15° C to 120° C^*
Ambient Temperature : 45° C
Max. Working Pressure : 21 bar
Insulation Class F : "F"
Degree of Protection : IP 55

* Applicable only for Special Mechanic Seal Models

Material Of Construction

Pump Shell : SS 304 / SS 316
Impeller : SS 304
Diffuser : SS 304
Mech. Seal : SiC vs SiC vs Viton
Motor Frame : Aluminium
Front & Back Cover : Aluminium
Cooling Fan Cover : Mild Steel
Cooling Fan : Nylon

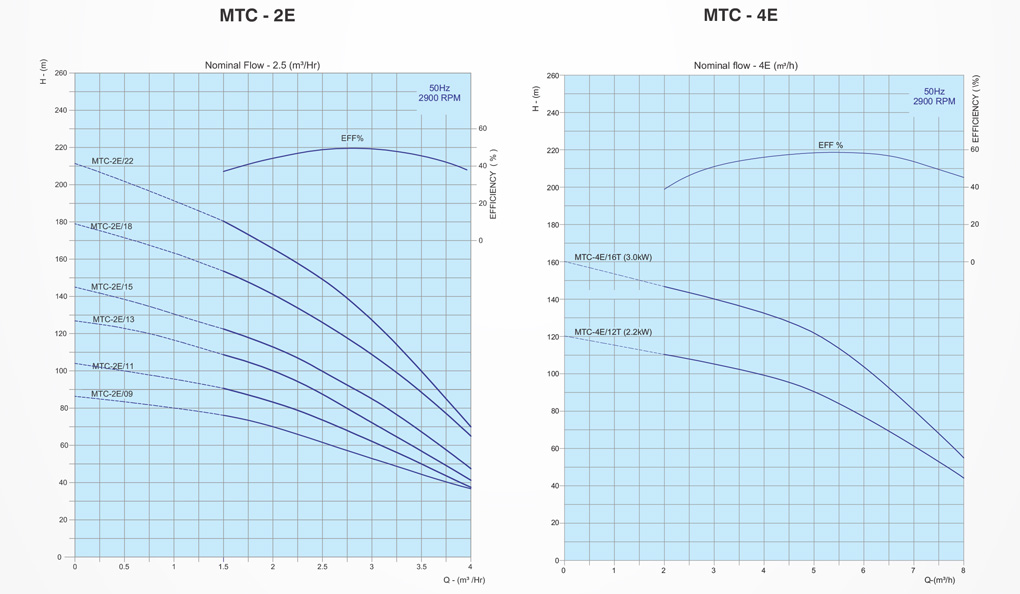

Performance curve

MTC - 2E

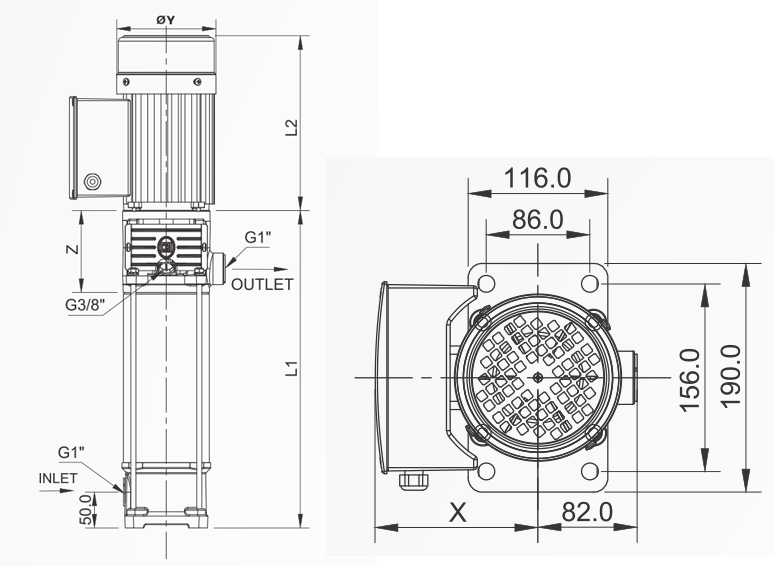

Model	Power		Dimension in mm							Weight in kg
	kW	HP	L1	L2		X		Ø Y	Z	Pump	Motor
	kW	HP	L1	1Ph	3Ph	1Ph	3Ph	Ø Y	Z	MTP	1Ph	3Ph
MTC - 2E/09	1.1	1.5	407.5	260	260	148	112	139	114.5	10.0	10.7	10.4
MTC - 2E/11	1.1	1.5	443.5	260	260	148	112	139	114.5	11.8	10.7	10.4
MTC - 2E/13	1.5	2	497.5	320	290	157	121	160	132.5	12.0	15.3	12.0
MTC - 2E/15	1.5	2	533.5	320	290	157	121	160	132.5	12.7	15.3	12.0
MTC - 2E/18	2.2	3	587.5	303	303	161	125	176	132.5	13.7	18.0	16.7
MTC - 2E/22	2.2	3	695.5	303	303	161	125	176	132.5	15.2	18.0	16.7

MTC - 4E

Model	Power		Dimension in mm							Weight in kg
	kW	HP	L1	L2		X		Ø Y	Z	Pump	Motor
	kW	HP	L1	1Ph	3Ph	1Ph	3Ph	Ø Y	Z	MTP	1Ph	3Ph
MTC - 4E/12	2.2	3.0	516	303	303	161	125	176	132.5	12.8	18.0	16.7
MTC - 4E/12	3.0	4.0	552	361	361	161	125	176	132.5	14.8	22.2	21.2

Performance Chart

MTC - 2E

Model	KW	HP	Stage	m³/hr	0	1	1.5	2	2.5	3	3.5	4
Model	KW	HP	Stage	lps	0	0.27	0.41	0.55	0.69	0.83	0.97	1.11
MTP-2E/09	1.1	1.5	9	HEAD IN METERS	86	80	76.5	70	62	52.5	45	37
MTP-2E/11	1.1	1.5	11		104	90	85.5	83	73.5	62.5	50	37.5
MTP-2E/13	1.5	2	13		127	117	109	100	87.5	72.5	57.5	42
MTP-2E/15	1.5	2	15		145	130	122.5	112.5	100	85	67.5	47.5
MTP-2E/18	2.2	3	18		179	163	153.5	141	126	108	88	63
MSP-2E/22	2.2	3	22		211	182	180	165	150	127.5	100	70

MTC - 4E

Model	KW	HP	Stage	m³/hr	0	1	1.5	2	2.5	3	3.5	4
Model	KW	HP	Stage	lps	0	0.27	0.41	0.55	0.69	0.83	0.97	1.11
MTP-4E/12	2.2	3	12	HEAD IN METERS	110	105	95	90	82	70	55	40
MTP-4E/16	3	4	16	HEAD IN METERS	160	147	140	132.5	122	104	80	55

Performance Curve
