C.R.I S.S. Centrifugal Monoblock / Self-Priming Jet pumps are carefully designed to give best hydraulic efficiency and suction lift charateristics. Most modern and highly sophisticated machinery and technology are employed in the manufacture of these pumps, using quality raw material, seals and ball bearings to ensure lonf life. Dynamically balanced rotor ensures vibration free and noise free operation. All single phase pumps are in-built with thermal overload protector to prevent overload. High operating efficiency of these pumps result in low power consumption.
| Specifications | JTS Series |
|---|---|
| Power range | 0.37 kW & 0.75 kW (0.5HP & 1HP) |
| Maximum Head | 40 metre |
| Maximum flow rate | 1.04 Lps (3.75 m3/hr) |
| Normal suction & delivery sizes | 25 mm x 25 mm |
| Versions | 1 Ph - 220V / 3Ph - 380-415V, 50Hz, AC |
| Maximum suction lift | Upto 8 metre |
| Speed | 2900 rpm |
| Degree of protection | IP 54 |
| Class of insulation | "B" |
| Direction of rotation | Clockwise viewed from driving end |
| Type of duty | S1 |
| Maximum liquid temperature | +5 °C to + 60 °C |
| Maximum ambient temperature | 40 °C |

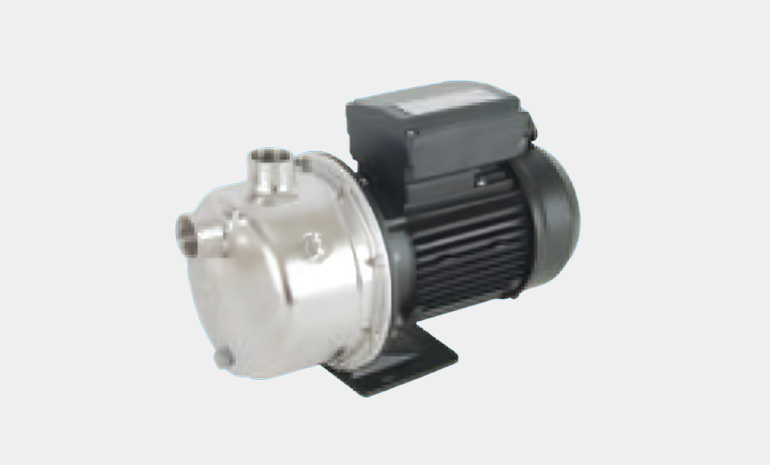

| JTS Series Stainless Steel Centrifugal Monoblock Pumpsets |
2900 RPM, Single Phase - 200 Volts. Three Phase - 380-415 Volts 50 Hz, AC Supply |
|---|
| Pump Model | Motor Power | Norminal Pump Size In MM (Suction x Delilvery) |
m3/hr | 0 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 3.75 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1Ø | 3Ø | kW | HP | lps | 0 | 0.1 | 0.3 | 0.4 | 0.6 | 0.7 | 0.8 | 1.0 | 1.04 | |
| JTS-2/03M | JTS-2/03T | 0.37 | 0.5 | 25 x 25 | Head in Meters | 36 | 31 | 27 | 22 | 17 | 11 | 7 | ||
| JTS-2/07M | JTS-2/07T | 0.75 | 1.0 | 25 x 25 | 40 | 37 | 34 | 32 | 29 | 27 | 23 | 17 | 10 | |
| Part name | Material |
|---|---|
| Pump Casing | S.S. 304 |
| Motor Frame | Aluminium |
| Impeller | S.S. 304 |
| Shaft | S.S. 304 |
| Shaft Sealing | Mechanical Seal (Carbon & Ceramic) |
