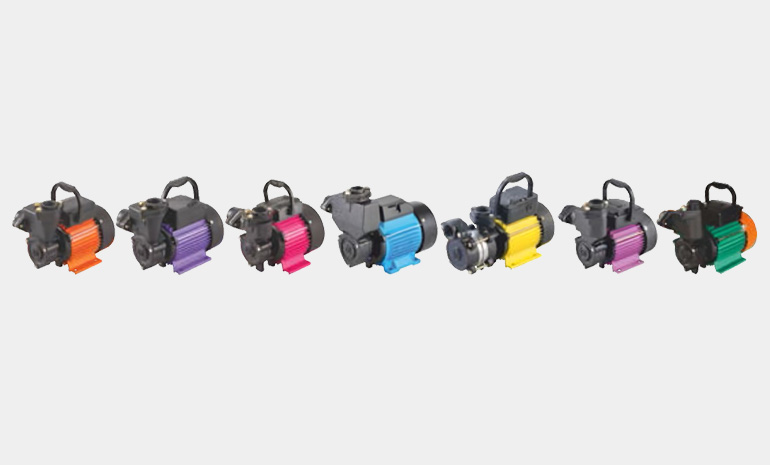

Selfpriming / Non-selfpriming Monoblock Pumpsets

Royale / Xcite / Shine/ Dora / Dhoom / Champee / Miki & Elsa Series

C.R.I self priming monoblock pumpsets are power-driven by a totally enclosed fan cooled AC induction two pole motor,suitable for continuous duty. Motor stator is made of low watt loss silicon laminations assembled under presssure and rigidly locked in the frame. the windings are of high - grade enameled copper wire and are varnish impregnated. Construction of motor frames and usage of quality materials result in high performance, noise free operation and low temperature rise thereby increasing the life cycle of the motor. Pumps volute chamber and impellers are designed to give the best possible hydraulic efficiency and suction lift characteristics, Non-self priming pumps with end end suction and radial delivery.

Salient Features
  • Upto 100metre (328 feet) working capacity.
  • Built-in with imported Thermal Overload Protector.
  • Specially designed for wide voltage operation.
  • Powder coated multi-color stator body.
  • Sturdy and compact.
  • Double sealed ball bearing, so no need of external lubrication.
  • Pumpset available with extension shaft for multi purpose application.
Specifications
Specifications Royale / Xcite / Shine / Dora / Dhoom / Champee & Miki
Power range 0.18kW - 1.1kW (0.25HP - 1.5HP)
Speed 2880 RPM
Versions 1Ph - 220-240 V; 3Ph - 380-415 V, 50 Hz AC supply
Maximum total head 100 metre
Maximum flow rate 3800 Lph (3.8 m3/hr)
Degree of protection IP 44
Direction of ratation Clockwise from driving end
Class of insulation B
Type of duty S1 (Continous)
Maximum suction lift Upto 8 metre
Maximum liquid temperature 330c
Maximum ambient temperature 400c
Nominal size (suction x delivery) 15 x 15, 20 x 20 & 25 x 25 mm
Performance Chart
Model KW HP Type Suction X Delivery in mm Suction Capacity im mtrs Total Head in metre / feet
6 8 10 12 15 18 21 25 30
20 26 33 39 49 59 69 82 98
Discharge in LPH
DORA 50 0.37 0.5 Self Priming 25x25 8 2016 1872 1750 1512 1332 1000 800 360
DORA 100 0.75 1 Self Priming 25x25 8 3000 2800 2600 2450 2320 2100 1880 1720 1320
Model KW HP Type Suction X Delivery in mm Suction Capacity im mtrs Total Head in metre / feet
6 8 10 12 15 18 21 25 30
20 26 33 39 49 59 69 82 98
Discharge in LPH
SHINE 50/50 PLUS 0.37 0.5 Self Priming 25x25 8 2088 2000 1800 1600 1400 1220 1000 760
SHINE 100/100 PLUS 0.75 1 Self Priming 25x25 8 3050 2850 2650 2500 2350 2120 1900 1800 1400
Model KW HP Type Suction X Delivery in mm Suction Capacity im mtrs Total Head in metre / feet
6 8 10 12 15 18 21 25 26 28 30 35
20 26 33 39 49 59 69 82 85 92 98 115
Discharge in LPH
MIKI 50 0.37 0.5 Self Priming 25x25 8 2100 1928 1802 1557 1372 1030 824 600 450 250
MIKI 50 0.37 0.5 Self Priming 25x25 8 2150 2060 1854 1648 1442 1256 1030 782 550 300
MIKI 100 0.75 1 Self Priming 25x25 8 3340 3186 3060 2916 2700 2412 2160 1872 1755 1638 1404 830
Model KW HP Type Suction X Delivery in mm Suction Capacity im mtrs Total Head in metre / feet
6 8 10 12 15 18 21 25 30 35 40 45
20 26 33 39 49 59 69 82 98 115 131 148
Discharge in LPH
XCITE 50* 0.37 0.5 Self Priming 25x25 8 2000 1900 1800 1700 1600 1100 920 680
XCITE 51*/C PLUS 51 0.37 0.5 Self Priming 25x25 8 2300 2200 2050 1850 1700 1512 1300 900
XCITE 100*/C PLUS 100/ES 0.75 1 Self Priming 25x25 8 3100 2900 2592 2520 2450 2250 2100 1900 1620 1350 1000 825
Model KW HP Type Suction X Delivery in mm Suction Capacity im mtrs Total Head in metre / feet
6 8 10 12 15 18 21 25 30 35 40 45 50 55 58
20 26 33 39 49 59 69 82 98 115 131 148 164 180 190
Discharge in LPH
ROYALE 51* 0.37 0.5 Self Priming 25x25 8 2700 2550 2300 2150 2000 1700 1500 1260 864
ROYALE 52*/ES 0.37 0.5 Self Priming 25x25 8 3150 2950 2808 2600 2448 2200 2088 1800 1500
ROYALE 100* 0.75 1 Self Priming 25x25 8 3100 3000 2900 2700 2600 2480 2350 2196 1980 1728 1368
ROYALE 101 0.75 1 Self Priming 25x25 8 3400 3300 3250 3200 3150 3000 2950 2736 2376 2200 1550 1200
ROYALE 150 1.1 1.5 Self Priming 25x25 8 3888 3800 3750 3700 3600 3500 3400 3300 3060 2750 2450 2000 1350
ROYALE D PLUS 50 0.37 0.5 Self Priming 25x25 8 2800 2736 2550 2350 2160 1944 1728 1365 936 504
ROYALE D PLUS 51 0.37 0.5 Self Priming 25x25 8 3100 3060 2970 2880 2592 2268 2088 1656 1080 650
ROYALE D PLUS 100 0.75 15 Self Priming 25x25 8 3350 3269 3276 3258 3204 3096 2880 2592 2268 1980 1692 1404 1080 756 576
ROYALE D PLUS 101 0.75 1 Self Priming 25x25 8 3400 3350 3357 3340 3285 3174 2952 2656 2324 2029 1734 1434 1107 775 590
ROYALE E PLUS 100 0.75 15 Self Priming 25x25 8 3350 3269 3276 3258 3204 3096 2880 2592 2268 1980 1692 1404 1080 756 576
ROYALE E PLUS 101 0.75 1 Self Priming 25x25 8 3400 3350 3357 3340 3285 3174 2952 2656 2324 2029 1734 1434 1107 775 590

WONDER SUCTION

Model KW HP Type Suction X Delivery in mm Suction Capacity im mtrs Total Head in metre / feet
6 8 10 12 15 18 21 25 30 35 40 45 50 55
20 26 33 39 49 59 69 82 98 115 131 148 164 180
Discharge in LPH
DHOOM 51 0.37 0.5 Wonder Suction 25x25 8 1550 1520 1500 1480 1350 1200 1090 850
DHOOM 52 0.37 0.5 Wonder Suction 15x15 8 1370 1270 1150 1100 1020 900 800 520
DHOOM 53 0.37 0.5 Wonder Suction 25x25 8 1580 1480 1400 1350 1300 1000 850 550
DHOOM 75 0.55 0.75 Wonder Suction 25x25 8 1900 1850 1775 1700 1620 1400 1200 950 500
DHOOM 100 0.75 1 Wonder Suction 25x25 8 2450 2350 2200 2100 1900 1750 1600 1450 1200 750
DHOOM 150 1.1 1.5 Wonder Suction 25x25 8 3200 3150 3100 3000 2950 2900 2800 2700 2500 2350 2000 1650 1200 750
DHOOM 52 D PLUS 0.37 0.5 Wonder Suction 15x15 8 1880 1833 1761 1660 1458 1295 1108 800 594
DHOOM 75 D PLUS 0.5 0.75 Wonder Suction 25x25 8 2048 1995 1925 1865 1775 1656 1500 1286 924 453
DHOOM 100 D PLUS 0.75 1 Wonder Suction 15x15 8 2085 2018 1928 1849 1715 1640 1475 1250 978 706

SPECIALLY DESIGNED FOR R.O. APPLICATION

Model KW HP Type Suction X Delivery in mm Suction Capacity im mtrs Total Head in metre / feet
6 8 10 12 15 18 21 25 30 35 40 45 50 55 60 70 80 90 100
20 26 33 39 49 59 69 82 98 115 131 148 164 180 197 230 262 295 328
Discharge in LPH
CHAMPEE 150 1.1 1.5 Non SelfPriming 25x25 8 3300 3200 3024 2950 2900 2800 2700 2600 2400 2250 2200 2100 2000 1850 1750 1200 900 400 150
CHAMPEE 100 0.75 1 Non SelfPriming 25x25 8 1700 1650 1600 1550 1500 1400 1380 1300 1200 1100 1000 900 800 700 650 480 320 180
Model KW HP Suction X Delivery in mm Suction Capacity im mtrs Total Head in metre / feet
6 8 10 12 15 18 21 25 28 30 32 35 40
20 26 33 39 49 59 69 82 91 98 104 115 131
Discharge in LPH
ELSA 50 0.37 0.5 25x25 8 2095 1920 1750 1610 1400 1155 925 685 430 -
ELSA 50* 0.37 0.5 25x25 8 1985 1795 1625 1475 1250 1050 815 485 -
ELSA 100 0.75 1 25x25 8 2965 2730 2520 2330 2050 1755 1410 950 615 300 -
ELSA 101 0.75 1 25x25 8 3140 3065 2875 2700 2440 2190 1845 1440 1110 815 520 -
ELSA 105* 0.75 1 25x25 8 2990 2760 2585 2385 2150 1910 1690 1440 1245 1080 930 685 -

* Models with copper coated winding

Material Of Construction - Pumpset
Part name Material
Pump Casing Cast Iron
Bracket & Rear Cover Cast Iron
Volute Casing Forged SS / Brass
Rotor Aluminium Die Cast
Motor Body Aluminium Extruded / Die Cast / Cast Iron
Motor Shaft SS 410
Cooling Fan Poly Propylene - Co Polimer
Cooling Fan Cover Poly Propylene - Co Polimer / MS
Impeller High Tensile Brass
Mechanical Seal Carbon & Ceramic
